• Drop forged are quenched and tempered for optimum strength
• Furnished with Unified National Coarse (U.N.C.) threads
• Special threads and lengths
• Pack of 1 EA
• Manufacturer part number: 7100225
• UPC Code: 204183166850
• Proof Tested in Accordance with the Applicable ASTM, NACM, OSHA, and AISI/ASME Requirements; Manufactured in Accordance with the Latest Revision of ANSI/ASME B18.15

Specifications:

• Eye Inner Diam [Nom] = 1 3/8 in
• Eye Outer Size = 2 1/2 in
• Load (Max) @ Angle = 4,000 lb @ 0 °; 2,000 lb @ 30 °; 1,200 lb @ 45 °; 950 lb @ 60 °; 800 lb @ 90 °
• Load Cap. [Nom] = 4000 lb
• Material = Forged Carbon Steel
• Overall Length [Nom] = 1 3/4 in
• Quantity = 1 per box
• Thread - TPI or Pitch = 5/8 in - 11 UNC

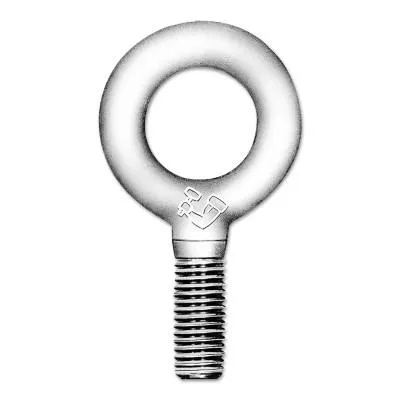

• Type = Eye Bolt-Shouldered
• Wt. = 0.59 lb
• This is a normal stocking item.
